Essential AutoCAD Techniques: Layers, Dynamic Blocks, and Attributes

Welcome back to AutoCAD Essentials for Mechanical Engineers blog series. In this blog, we dive into using attributes, dynamic blocks, and layers—three essential AutoCAD features that enhance efficiency in drafting and managing AutoCAD 2D and AutoCAD 3D drawings. These tools are foundational to mechanical CAD design workflows, ensuring both organization and flexibility for engineers working on complex projects.

Using Attributes in Dynamic Blocks

Attributes are text-based data attached to blocks in AutoCAD, allowing you to include relevant information like cost, dimensions, and materials directly within the block. This approach is incredibly useful in AutoCAD for mechanical engineers where multiple versions of components might require different specifications.

For example, let’s say you’re creating a dynamic block of a hex nut. After defining the main attributes like "Material," "Nominal Dimension," and "Cost" (e.g., 50 rupees by default), you can set these up to align automatically with the block. Upon saving and reinserting the block, an attribute editor will pop up, showing fields for these properties—making it easy to modify them without redefining the block.

This setup saves time, as you won’t need to repeatedly reconfigure each detail for different blocks, which is especially useful in AutoCAD mechanical drawings.

Exploring Action Parameters

Action parameters in dynamic blocks allow users to control block geometry dynamically. AutoCAD offers various parameter types—point, linear, polar, XY, and rotation—each designed to let you create customizable, flexible blocks. For example, a “Linear Move” action enables precise movement of an object or part within the block, making it adaptable for scaling or stretching based on design needs.

To apply an action parameter:

• Choose the parameter type (e.g., Linear).
• Set the action you want to apply (like "Move" or "Scale").
• Apply the action to the dynamic block’s parameter points, letting you control that block’s behavior under different settings.

This feature, key in CAD software for engineers, helps ensure design flexibility in complex assemblies and is central to AutoCAD essential training.

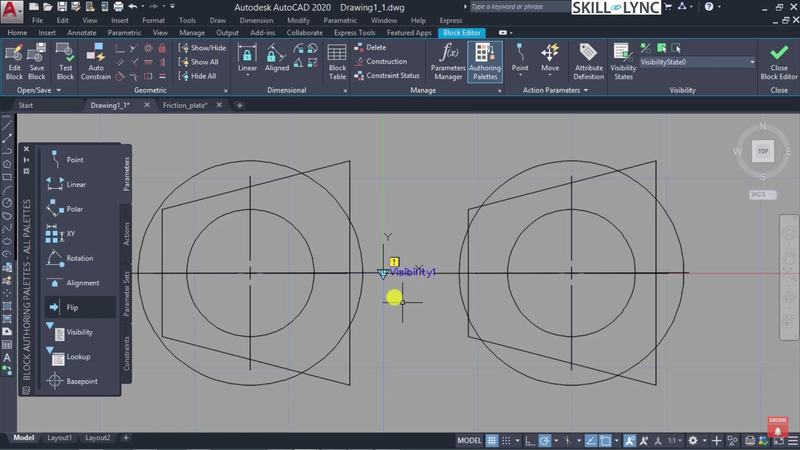

Visibility States: Switching Between Projections

One of the most powerful features in AutoCAD for engineers is the ability to use visibility states to switch between views—ideal for toggling between first-angle and third-angle projection symbols in mechanical CAD work.

Here’s how to set up visibility states:

• Duplicate the projection symbols and overlap them within the block.
• Define visibility parameters and set them up to alternate between first-angle and third-angle projection symbols.
• Save the block, and you can now quickly toggle between the projections as needed in your drawing.

This feature makes managing complex views seamless, without needing to create separate blocks for each view, which is particularly helpful in AutoCAD for mechanical engineering.

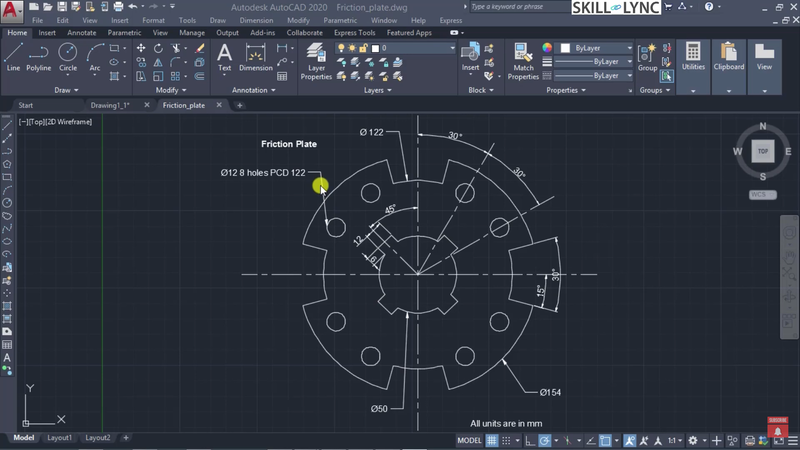

Organizing with Layers in AutoCAD

Layers in AutoCAD allow you to organize your drawing by grouping elements with similar properties. For example, separating dimensions, annotations, construction lines, and main drawings into individual layers improves both clarity and efficiency. This technique is vital for AutoCAD 2D drawing for beginners and seasoned professionals alike.

To create and manage layers:

• Access the Layer Properties Manager by typing "Layer" in the command line.
• Add new layers for construction lines, final drawings, and annotations.
• Customize properties for each layer, such as color, line weight, and transparency, to help distinguish different parts of your drawing.
• Using layers allows engineers to turn off or lock layers as needed, making it easier to focus on specific aspects of a drawing. It also helps streamline the AutoCAD mechanical crash course process for anyone looking to deepen their understanding of CAD programs.

Shortcut Keys and Efficiency Tips

AutoCAD provides an array of shortcut keys that enhance productivity:

• F2 toggles the text screen.
• F8 turns Ortho mode on/off.
• Shortcut keys like C for Circle, L for Line, and TR for Trim allow quick access to frequently used commands.

Mastering these shortcuts is crucial in AutoCAD training and certification, helping users navigate and modify drawings quickly.

Conclusion: Building Proficiency in AutoCAD for Engineers

In this post, we explored dynamic blocks, action parameters, visibility states, layers, and shortcuts, all essential elements of AutoCAD essentials. Whether you’re in a CAD course for mechanical engineers or diving into an AutoCAD online course, mastering these features will significantly boost your productivity in AutoCAD 2024 and beyond.

Understanding how to utilize dynamic blocks, attribute definitions, and layers effectively is key to efficient mechanical AutoCAD 2D drawing and 3D CAD design. Stay tuned for more insights in this series to refine your skills and maximize your AutoCAD essentials training experience!
