  3. Creation of geometries by Coordinate system methods using AutoCad

Creation of geometries by Coordinate system methods using AutoCad

Aim: AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using 4 coordinates system namely, Absolute coordinate system Relative rectangular coordinate system Relative polar coordinate system Direct distance entry system Which are explained…

    • NIVETHITHA NATRAYAN

      updated on 13 Apr 2022

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using 4 coordinates system namely,

    • Absolute coordinate system
    • Relative rectangular coordinate system
    • Relative polar coordinate system
    • Direct distance entry system

    Which are explained in detail below

     Procedure:

    P1

    Absolute coordinates system:

    In command: press L for LINE

    LINE Specify the first point or undo: 2,1

    LINE Specify the next point or undo:8,1

    LINE Specify the next point or undo]:8,2

    LINE Specify the next point or undo]:3,2

    LINE Specify the next point or [ close or undo]:3,6

    LINE Specify the next point or [ close or undo]:8,6

    LINE Specify the next point or [ close or undo]:8,7

    LINE Specify the next point or [ close or undo]: 2,7

    LINE Specify the next point or [ close or undo]: click close to the close the drawing

    Relative rectangular coordinate system:

    In command: press L for LINE

    LINE Specify the first point: 2,1

    LINE the next point or undo: @6,0

    LINE Specify the next point or undo]: @0,1

    LINE Specify the next point or undo]: @-5,0

    LINE Specify the next point or [ close or undo]: @0,4

    LINE Specify the next point or [ close or undo]: @5,0

    LINE Specify the next point or [ close or undo]: @0,1

    LINE Specify the next point or [ close or undo]: @-6,0

    LINE Specify the next point or [ close or undo]: click close to the close the drawing

    Relative polar coordinate system:

    In command: press L for LINE

    LINE Specify the first point: 2,1

    LINE Specify the next point or undo: @6<0

    LINE Specify the next point or undo]: @1<90

    LINE Specify the next point or undo]: @5<180

    LINE Specify the next point or [ close or undo]: @4<90

    LINE Specify the next point or [ close or undo]: @5<0

    LINE Specify the next point or [ close or undo]: @1<90

    LINE Specify the next point or [ close or undo]: @6<180

    LINE Specify the next point or [ close or undo]: click close to the close the drawing

    Direct distance entry system:

    In command: press L for LINE

    LINE Specify the first point: 2,1

    LINE Specify the next point or undo: 6

    LINE Specify the next point or undo]: 1

    LINE Specify the next point or undo]: 5

    LINE Specify the next point or [ close or undo]: 4

    LINE Specify the next point or [ close or undo]: 5

    LINE Specify the next point or [ close or undo]: 1

    LINE Specify the next point or [ close or undo]: 6

    LINE Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    P2:

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using 4 coordinates system namely,

    • Absolute coordinate system
    • Relative rectangular coordinate system
    • Relative polar coordinate system
    • Direct distance entry system

    Which are explained in detail below

     Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point or undo: 2,1

    Specify the next point or undo:5,1

    Specify the next point or undo]:5,5

    Specify the next point or undo]:6,5

    Specify the next point or [ close or undo]:6,1

    Specify the next point or [ close or undo]:9,1

    Specify the next point or [ close or undo]:7,8

    Specify the next point or [ close or undo]: 4,8

    Specify the next point or [ close or undo]: click close to the close the drawing

    Relative rectangular coordinate system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: @3,0

    Specify the next point or undo]: @0,4

    Specify the next point or undo]: @1,0

    Specify the next point or [ close or undo]: @0, -4

    Specify the next point or [ close or undo]: @3,0

    Specify the next point or [ close or undo]: @-2,7

    Specify the next point or [ close or undo]: @3,0

    Specify the next point or [ close or undo]: click close to the close the drawing

    Relative polar coordinate system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: @3<0

    Specify the next point or undo]: @4<90

    Specify the next point or undo]: @1<0

    Specify the next point or [ close or undo]: @4<270

    Specify the next point or [ close or undo]: @3<0

    Specify the next point or [ close or undo]: @7<106

    Specify the next point or [ close or undo]: @3<180

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.





    P3

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using relative polar coordinates system

    Procedure:

    Relative polar coordinate system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: @1<0

    Specify the next point or undo]: @2<90

    Specify the next point or undo]: @3<0

    Specify the next point or [ close or undo]: @1<90

    Specify the next point or [ close or undo]: @3<180

    Specify the next point or [ close or undo]: @3<90

    Specify the next point or [ close or undo]: @5<0

    Specify the next point or [ close or undo]: @1<90

    Specify the next point or [ close or undo]: @6<180

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.





    P4

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: 3,1

    Specify the next point or undo]: 3,5

    Specify the next point or undo]: 5,3

    Specify the next point or [ close or undo]: 7,5

    Specify the next point or [ close or undo]: 7,1

    Specify the next point or [ close or undo]: 8,1

    Specify the next point or [ close or undo]: 8,8

    Specify the next point or [ close or undo]: 7,8

    Specify the next point or [ close or undo]:5,5

    Specify the next point or [ close or undo]:3,8

    Specify the next point or [ close or undo]:2,8

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    P5

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using relative rectangular coordinates system.

    Procedure:

    Relative polar coordinate system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: @1,0

    Specify the next point or undo]: @0,7

    Specify the next point or undo]: @5,0

    Specify the next point or [ close or undo]: @0, -6

    Specify the next point or [ close or undo]: @-3,0

    Specify the next point or [ close or undo]: @0, -1

    Specify the next point or [ close or undo]: @4,0

    Specify the next point or [ close or undo]: @0,8

    Specify the next point or [ close or undo]: @-7,0

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    P6

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: 2,9

    Specify the next point or undo]: 6,9

    Specify the next point or undo]: 6,5

    Specify the next point or [ close or undo]: 1,6

    Specify the next point or [ close or undo]: 10,5

    Specify the next point or [ close or undo]: 10,3

    Specify the next point or [ close or undo]: 6,1

    Specify the next point or [ close or undo]: click close

    In command: press L for LINE

    Specify the first point: 3,3

    Specify the next point or undo: 3,6



    Specify the next point or [ close or undo]: 5,6

    Specify the next point or [ close or undo]:5,3

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.



    P7

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 2,1

    Specify the next point or undo: 2,7

    Specify the next point or undo]: 10,7

    Specify the next point or undo]: 10,1

    Specify the next point or [ close or undo]: press close

    In command: press L for LINE

    Specify the first point: 3,2

    Specify the next point or undo: 3,5

    Specify the next point or [ close or undo]: 5,5

    Specify the next point or [ close or undo]: 5,2

    Specify the next point or [ close or undo]:5,5

    Specify the next point or [ close or undo]: press close

    In command: press L for LINE

    Specify the first point: 6,2

    Specify the next point or undo: 6,5

    Specify the next point or [ close or undo]: 8,5

    Specify the next point or [ close or undo]: 8,2

    Specify the next point or [ close or undo]: press close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    P8

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 0,0

    Specify the next point or undo: 0,2

    Specify the next point or undo]: 4,2

    Specify the next point or undo]: 4,6

    Specify the next point or [ close or undo]: 1,6

    Specify the next point or [ close or undo]: 1,8

    Specify the next point or [ close or undo]: 9,8

    Specify the next point or [ close or undo]: 9,6

    Specify the next point or [ close or undo]: 6,6

    Specify the next point or [ close or undo]:6,2

    Specify the next point or [ close or undo]:10,2

    Specify the next point or [ close or undo]:10,0

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

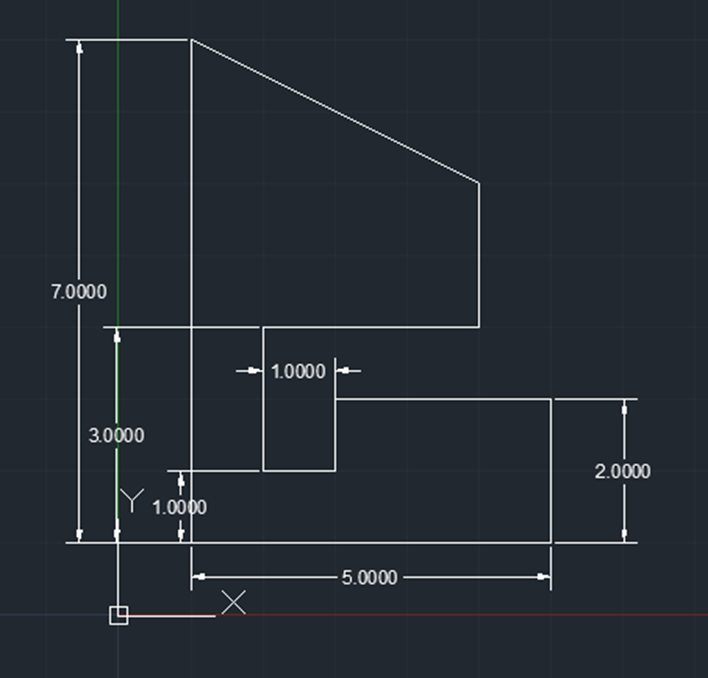

    P9

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 1,1

    Specify the next point or undo: 1,8

    Specify the next point or undo]: 5,6

    Specify the next point or undo]: 5,4

    Specify the next point or [ close or undo]: 2,4

    Specify the next point or [ close or undo]: 2,2

    Specify the next point or [ close or undo]: 3,2

    Specify the next point or [ close or undo]: 3,3

    Specify the next point or [ close or undo]: 6,3

    Specify the next point or [ close or undo]:6,1

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    P10

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 1,1

    Specify the next point or undo: 1,8

    Specify the next point or undo]: 6,8

    Specify the next point or undo]: 6,4

    Specify the next point or [ close or undo]: 3,4

    Specify the next point or [ close or undo]: 3,1

    Specify the next point or [ close or undo]: click close

    In command: press L for LINE

    Specify the first point:2,5

    Specify the next point or [ close or undo]: 2,7

    Specify the next point or [ close or undo]:5,7

    Specify the next point or [ close or undo]:5,5

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

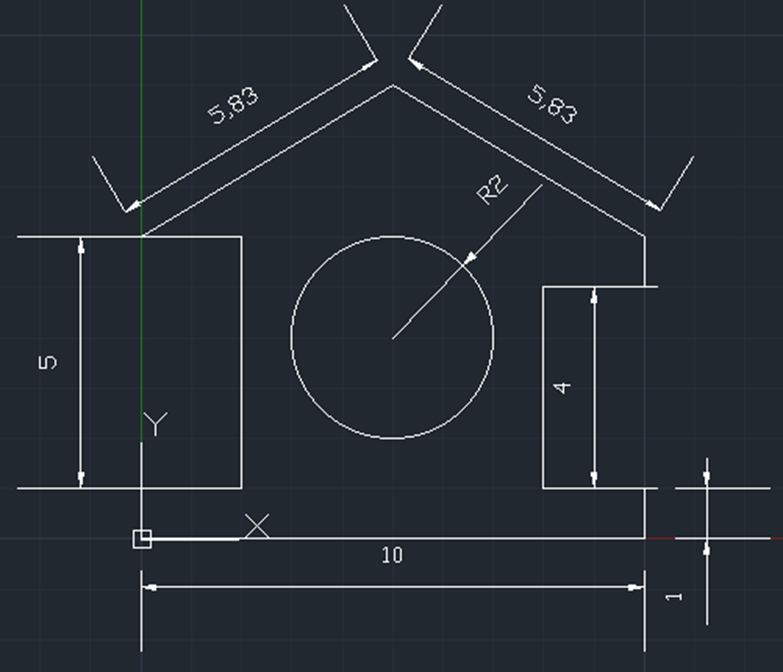

    Profile-wood:

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 0,0

    Specify the next point or undo: 0,1

    Specify the next point or undo]: 2,1

    Specify the next point or undo]: 2,6

    Specify the next point or [ close or undo]: 0,6

    Specify the next point or [ close or undo]: 5,9

    Specify the next point or [ close or undo]: 10,6

    Specify the next point or [ close or undo]: 10,5

    Specify the next point or [ close or undo]: 8,5

    Specify the next point or [ close or undo]:8,1

    Specify the next point or [ close or undo]: 10,1

    Specify the next point or [ close or undo]:10,0

    Specify the next point or [ close or undo]: click close

    To draw a circle

    In ribbon select circle drop down and choose center, radius.

    In command: Circle select center point of the circle or [ 3P 2P Ttr ( tan tan radius)]: 5,4

    Circle specify radius of the circle or [ Diameter]: 2

    Result:

    Hence the drawing is obtained by the above systems.

    Queen post truss:

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 1,1

    Specify the next point or undo: 1,5

    Specify the next point or undo]: 4.536,8.536

    Specify the next point or undo]: 8,5

    Specify the next point or [ close or undo]: 8,1

    Press Esc and in command: press L for LINE

    Specify the first point: 2,5

    Specify the next point or [ close or undo]: 2,6

    Specify the next point or [ close or undo]: 4.536,5

    Specify the next point or [ close or undo]: 7,6

    Specify the next point or [ close or undo]:7,5

    Press Esc and in command: press L for LINE

    Specify the first point: 4.536,5

    Specify the next point or [ close or undo]:4.536,8.536

    Specify the next point or [ close or undo]: click close to the close the drawing

    Result:

    Hence the drawing is obtained by the above systems.

    Mono pitch:

    Aim:

    AutoCAD is a software program used to design, form, and shape the 2-D and 3-D images using a computer. Here this diagram is drawn using absolute coordinates system.

    Procedure:

    Absolute coordinates system:

    In command: press L for LINE

    Specify the first point: 1,1

    Specify the next point or undo: 7,1

    Specify the next point or undo]: 7,3

    Specify the next point or [ close or undo]: click close

    In command: press L for LINE

    Specify the first point: 3,1

    Specify the next point or undo]: 3,1.667

    Specify the next point or [ close or undo]: 5,1

    Specify the next point or [ close or undo]: 5,2.333

    Specify the next point or [ close or undo]: 7,1

    Press Esc to finish the diagram

    Result:

    Hence the drawing is obtained by the above systems.

    Snap mode:

    Go to snap mode

    In drop down select snap setting

    In draft setting dialog box

    Under Snap on

    Select snap X spacing: 1

    Snap y spacing: 1

    Under Grid spacing

    Select Grid X spacing:1

    Grid Y spacing: 1

    Click OK

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by NIVETHITHA NATRAYAN (58)

    Project 2

    Objective:

    1. State the codal specifications of a compression member. IS 800 2007     2. What are the different cross-sectional shapes used for a column member? Rolled I section Welded I section Hollow section Welded box section channel angle    What is web buckling? Web buckling is the sudden deformation…

    calendar

    05 Jul 2023 11:09 AM IST

      Read more

      Project 1

      Objective:

      1.Aim: To design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. Given data: Building floors G + 6 + R Plan dimension B = 25m, L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180 kN/m2 Maximum slab thickness 150mm   Procedure:…

      calendar

      15 May 2023 03:32 PM IST

        Read more

        Week 3 Challenge

        Objective:

        State the primary load cases to be considered for design. Answer: The primary load cases to be considered for design are, Dead load- Can be referred in IS 875- P 1 Live load- Can be referred in IS 875- P 2 Wind load- Can be referred in IS 875- P 3 Seismic load- Can be referred in IS 1893:2016 Snow load- Can be referred…

        calendar

        17 Apr 2023 06:46 AM IST

          Read more

          Week 2 Challenge

          Objective:

          How will you assign Circular section to column? Answer: Go to property -> define and give the diameter of the column-> click add. Then select the property and assign it by assign by assignment method   How will you assign Unit system to a .std model file? Answer: It can be assigned at the initial stage when…

          calendar

          12 Apr 2023 02:01 PM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
